| INTRODUCTIONS: |
| ※
Advantages: |
|
1.
Each wireless phone can share the same extension number with desktop
phone set. or assigned with a |
|
different
extension number. You will never lose customer phone when you
leave desk to other regions. |
|
2. Wireless Phone features include speed key like Call
Transfer, Paging etc. It can use same functions as desktop |
|
telephone . |
|
3. Wireless card can be add-on built inside the digital PBX
system . |
|
4. Power supply for Base Station is supplied by PBX System.
Distance can be 1800m . |
|
|

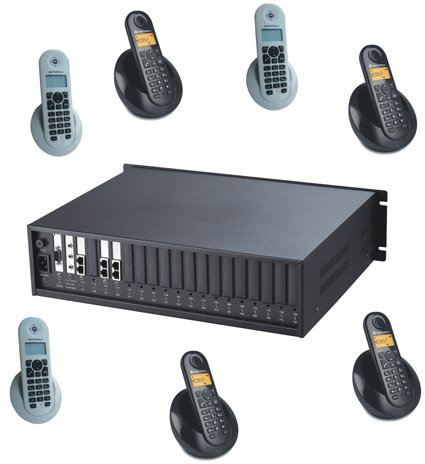

| ※ Composition: |
|
Part 1 : Miracall
Digital PBX MC-824KD series; |
|
Part
2 : Wireless Card , including 2, 4, 8 ports (built inside PBX),
which means you can connect 2,4 or 8 pcs of Base Station; |
|
Part 3 : Base Station , which connect with wireless card and
send signal to Wireless DECT Phones; |
|
Part 4 : Wireless DECT Extension phone, such as Miracall wph1
or Motorola C60ZC |
|
|
| ※
Part 1 : MC-824KD digital PBX |
|
|
|
MC-824KD1
MC-824KD2 |
|
| Base
Station:
2~8
pieces
2~8
pieces |
| Wireless
Card:
1pc , 2~8
port
1pc , 2~8
port |
|
| Single
DECT User:
32
32 |
|
| Single
Concurrent:
4
4 |
|
| System
DECT User:
192
192
|
|
| Occupy
Analog
0
24
ports
|
| Extensions
0
(EXT89~96 & EXT129~144
) |
|
| PBX
Socket
EXP2
EXP12 |
| |
|
| ※
Part
2 : Wireless Card (MC-WDC2, MC-WDC4, MC-WDC8) |
|
|
 |
|
|
Wireless Card, as the bridge of Base Station & PBX, is built-in
PBX installation, including 2 ports, 4 ports, 8 ports; |
|
2 ports can connect 2piece Base Station, and 4~8ports connect 4~8pcs
Base Station; |
|
|
1> Power Supply: Supplied from PBX
system; |
|
2> Cable : RJ45 from wireless card to RJ11
for Base Station; |
|
3> Cable distance: Max. 1800m from
Wireless Card to Base Station; |
|
4> Max. Quantity : 1 piece of
Wireless Card can put inside each PBX; |
|
5> Occupy Extensions : Do not
occupy Extensions for model MC-824KD1; |
|
24 nos. of Extensions for MC-824KD2; |
|
48 or 8 nos. of Extensions for MC-824KD3; |
|
6> Occupy PBX expand Socket: EXPCN2
for model MC-824KD1 , EXPCN12 for MC824KD2, KD3 |
|
| ※
Part
3 : Base Station (MC-WST) |
|
|
 |
|
| |
|
Base Station : is the devise to transfer wireless signal to
Wireless DECT phone users. |
|
|
1> Single DECT Users: 8~32 users; |
|
2> System DECT Users: 192~255 users; |
|
3> Distance to PBX: 1800m; |
|
4> Wireless Distance to DECT User:
50 m in office, 300m outside; |
|
5> Single concurrent Calls: 4
channels at same time; |
|
6> Power Supply: Supplied from
PBX System; |
|
7> Frequency Range: 2400MHZ ~
2483.5MHZ; |
|
8> Decode Type: FHSS, TDD and TDMA
(10ms/); |
|
9> Modulation: FSK, 32Kbits/sec.,
ADPCM , G.726; |
|
10> Roam: Support roam, for incoming
and outgoing calls; |
|
11> WIFI: Compatible; |
|
12> Cable Connection:
RJ11, 4-wiress; |
|
|
| ※ Part
4:
Wireless DECT Extension set (Motorola C601) |
|
|
 |
|
|
MOTOROLA C601ZC : the Wireless DECT phone which used in
Miracall DECT PBX system |
| |
|
1> Brand: Motorola,
the trustable logo and top quality; |
|
|
2> Features: |
|
1. 50
Phonebook
2. 10 Last Number Redial |
|
3. 40 CID at call
list
4. Call Transfer freely |
|
5. 80 hours
Standby
6. 5 hours Conversation |
|
7. 40 CID at call
list
8. Call Transfer freely |
|
9. 5 ringer
melody
10. 5-class Ringing volume |
|
11. 50-300m
distance
12. WIFI compatible |
|
|
3> Battery: |
|
750mAH , NI-MH |
|
Separate Charger |
|
Low-battery alert |
|
|
4> Color: Black or
White |
|
| ※
Connection
Map |
|
|
 |
|
|
1: Each digital PBX can only install 1 piece of Wireless Card
(optional 2 , 4 ,8 ports card ) |
| |
|
2: Each port of the Wireless Card connect 1 piece of Base
Station (WST) |
|
|
3: The cable to Wireless Card is RJ45 (8-wires 4-pair,
1-pair of RJ11 means 1 line to 1 Base Station) |
|
|
4: Distance from PBX (Wireless Card) to Base Station WST
is 1800m max. |
|
Wireless distance from Base Station WST is 50m inside office, and
estimated 300m outside; |
|
|
|
