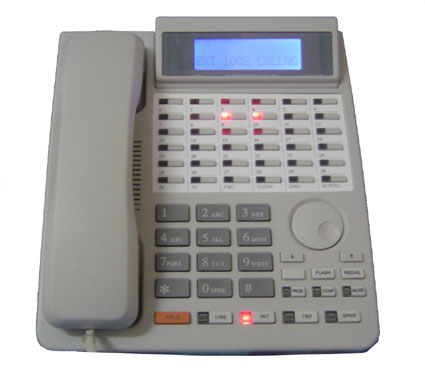

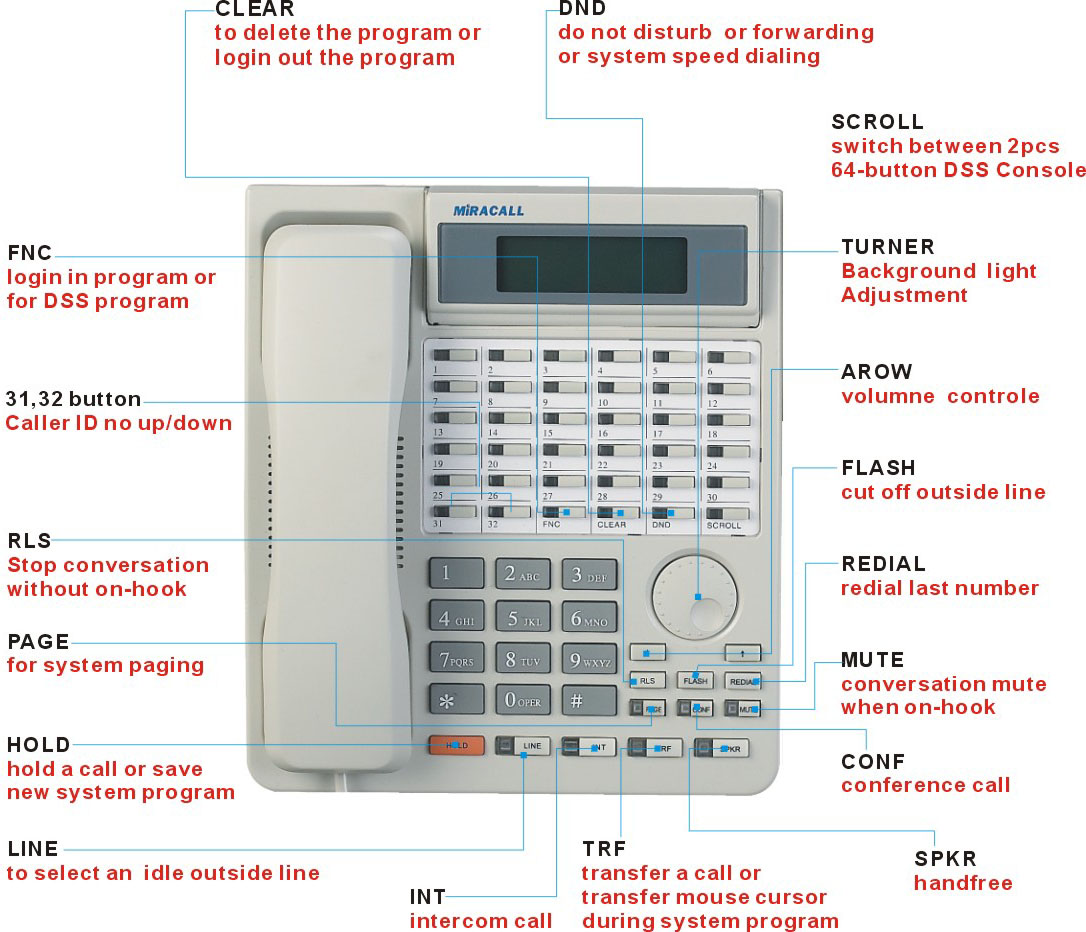

MC-3 Key Telephone 　 Programmable Button: 32 One Touch Button: 1~30 Fixed Function Button: 17 LCD Size: 2*16 Hand-free Speech: Yes Color: Ivory white  Volume Control: Up/down button Incoming Lamp: Nil Auto answer/Mute: Yes Wall-mounted: Yes Background lamp: Yes DSS Capacity: Yes, 2*64keys

User's Guide  Catalog

※     Possible Quantity which can work  Main Phone MC-3 & DSS Console

PBX MODEL                          MC-3 Quantity              MC-3 PBX Port                  MC-3 DSS Quantity               MC-3 DSS PBX  Port

MC-208K                                          1                                   001                                          0                                                      -

MC-416K                                          1                                   001                                          0                                                      -

MC-824K                                          4                               001~004                                     0                                                      -

MC-824KA                                     4~12               001-4,017-020,025-028                      2                                                   001

MC-824KA+                                   4~12               001-4,017-020,025-028                      2                                                   001

MC-824KD1                                    68                        001-004,017-080                            2                                                   001

MC-824KD2                                    80                              001-080                                      2                                                   001

MC-824KD3                                    80                              001-080                                      4                                             001 & 009
