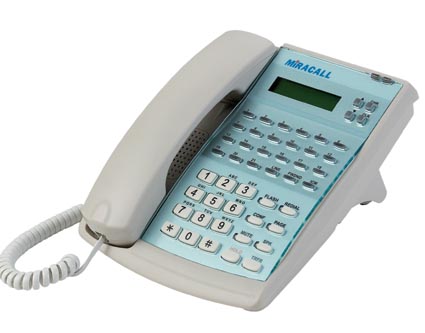

MC-40 Key Telephone



  • Programmable Button: 21
  • One Touch Button: 1~21
  • Fixed Function Button: 15
  • LCD Size: 2*12
  • Hand-free Speech: Yes
  • Color: White & slight blue
  • Volume Control: Up/down button
  • Incoming Lamp: Yes
  • Auto answer/Mute: Yes
  • Wall-mounted: Yes



 User's Guide  Catalog



 ※    Introduction for the Main Panel






※  Difference Between MC-40 & MC-50

       MC-40 Support Handfree out & incoming ; MC-50 only support Handfree incoming


※  Difference of a Miracall Key Telephone & Regular Telephone in market

       Miracall Key Telephone:           It only work with Miracall brand Hybrid System, can not work Panasonic or NEC,

                                                    Can program the system easily ;

                                                    You can see Extension Number, Program Status,CLID etc at LCD

                                                    Reception can see from colors of the Key to judge which Line is occupied or free.

      Other Regular Phone:              Can work and program Miracall PBX ,but without above advantages


※  Key Telephone & Regular phone Connection Miracall PBX Quantity & Ports



PBX Model Max. MC-40  MC-40 Connect Ports Max. Regular Phone Regular Phone Ports
MC-208K 1pc 001 8pcs 001~008
MC-416K, 416E 1pc 001 16pcs 001~016
MC-824K 1pc 001 48pcs 001~048
MC-824KA 4~12pcs 001~004, 017~020,025~028 64pcs 001~064
MC-824KA+ 4~12pcs 001~004, 017~020,025~028 120pcs 001~120
MC-824KD1 68pcs 001~004,017~080 80pcs 001~080
MC-824KD2 80pcs 001~080 144pcs 001~144
MC-824KD3 80pcs 001~080 312pcs 001~312






Analog Hybrid PBX
MC-208K (2 in,8 out)
MC-416K (4 in,16 out)
MC-416E (3/8,4/16 expand)
MC-824K (32port,1-4key)
MC-824KA (64port,12key)
MC-824KA+(120port,12key)
Digital Hybrid PBX
MC-824KD1 (80port,68key)
MC-824KD2 (144port,80Key)
MC-824KD3 (312port,80Key)
DECT Wireless Solution
GSM, CDMA Solution
Digital E1  PRI Solution
Call Center Solution
Key Telephones
MC-1  (32Key, Black)
MC-2  (16Key, Ivory white)
MC-3  (32Key, Ivory white)
MC-3 DSS  (32Key, white)
MC-40  (21Key, Ivory white)
MC-50  (21Key, Ivory white)
MC-3100S Basic Phone
Basic PBX
MC-208 (2 in,8 out)
TS-208 (2 in,8 out)
TS-308 (3 in,8 out)
TS-416 (4 in,16 out)
TAD-632 (6 in,32 out)
TK-848 (8 in,48 out)
TK-16128 (16 in,128 out)
Voice Logger
USB Box Voice Logger
PCI Voice Logger
Door Phone & Opener
Anti-lightning Box
8FXO IP PBX




MC-40 Other Information
PACKING SPECIFICATIONS
  Giftbox. Size: 28.5*25*6.7cm
N. Weight: 0.9kgs/pc
G. Weight: 1.2kgs/pc
10pcs/CTN.
CTN Size: 65*29*28cm
Voltage: 28VDC
Power Currency: 150mA
Max. cable Length:  100m
Cable wire:  4-wire (2pair)
Dialing Mode: DTMF
Environment Temp: 0~45º C
Environment Humidity: 10%~90%
